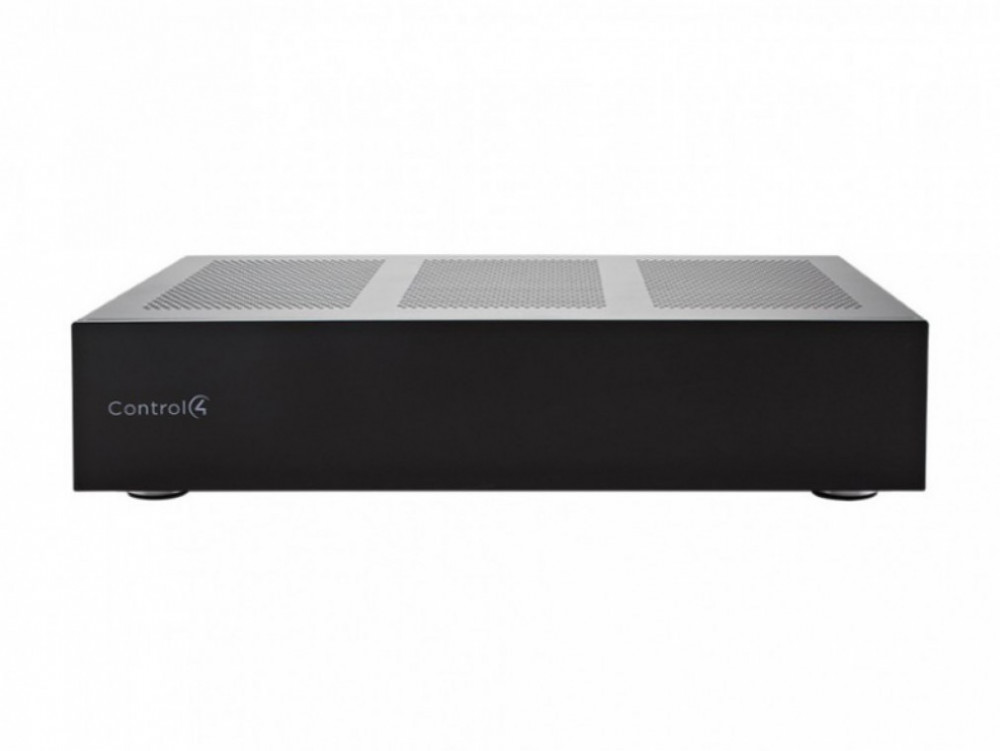

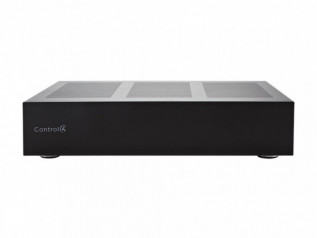

Control4 C4-AMP108
Kontakta oss för frågor eller köp!
The powerful 8-Zone Power Amplifier manages up to eight analog line
audio inputs and up to eight zone outputs, including a global line input
and output. Its power standby mode, automatic fault detection and
system reset protects the amp and speakers from damage.
Specifications:
Model Number: C4-AMP108
Zone Line Inputs: 8 Stereo, RCA Style
Zone Speaker Outputs: 8 Stereo, Phoenix Style
Zone Line Outputs: 8 Stereo, RCA Style
Global Line Input: 1 Stereo, RCA Style
Global Line Output: 1 Stereo, RCA Style
Rated Wattage Per Channel (Two Channels Driven): 55W @ 8 Ohms, 100W @ 4 Ohms
Rated Wattage Per Channel (All Channels Driven): 30W @ 8 Ohms, 40W @ 4 Ohms
Rated Wattage (Bridged): 200W @ 8 Ohms
Frequency Response: 20Hz - 40kHz (+/- 3dB)
Signal-to-Noise Ratio: >-86dB A-Weighted
THD: <0.3% at 1 kHz
Zone Input Gain: Yes
Global Input Gain: Yes
Voltage Input Trigger: 5 - 30V AC or DC
Voltage Output Trigger: 5 - 30V AC or DC
Rack Mount Kit: Included—3U Vented
Power Requirements: 100-240VAC, 50-60 Hz
Environmental:
Operational Temperature: 32° F – 104° F (0° C – 40° C)
Humidity: 5% to 95% Non-Condensing
Storage: -4° F – 158° F (-20° C – 70° C)
Miscellaneous:
Dimensions Without Rack Mount Kit (H×W×D): 2U, 440mm × 87mm × 246mm
Dimensions With Rack Mount Kit (H×W×D): 3U, 528mm × 137mm × 246mm
Weight: 5.99 kg
