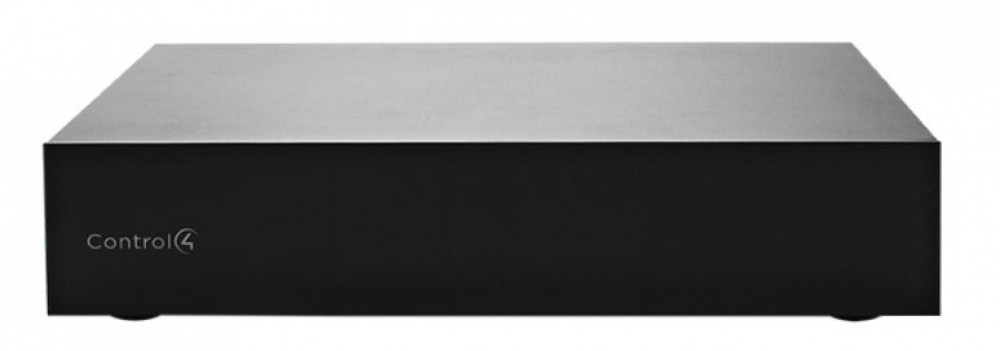

Control4 C4-AMP104

Mer produktinformation
Garanti i 12 månader

Kontakta oss för frågor eller köp!

The powerful 4-Zone Power Amplifier manages up to four analog line audio
inputs and up to four zone outputs, including a global line input and
output. Its power standby mode, automatic fault detection and system
reset protects the amp and speakers from damage.

Model Number: C4-AMP104
Zone Line Inputs: 4 Stereo, RCA Style
Zone Speaker Outputs: 4 Stereo, Phoenix Style
Zone Line Outputs: 4 Stereo, RCA Style
Global Line Input: 1 Stereo, RCA Style
Global Line Output: 1 Stereo, RCA Style
Rated Wattage Per Channel (Two Channels Driven): 55W @ 8 Ohms, 100W @ 4 Ohms
Rated Wattage Per Channel (All Channels Driven): 45W @ 8 Ohms, 60W @ 4 Ohms
Rated Wattage (Bridged): 200W @ 8 Ohms
Frequency Response: 20Hz - 40kHz (+/- 3dB)
Signal-to-Noise Ratio: >-86 dB A-Weighted
THD: <0.3% at 1 kHz
Zone Input Gain: Yes
Global Input Gain: Yes
Voltage Input Trigger: 5 - 30V AC or DC
Voltage Output Trigger: 5 - 30V AC or DC
Rack Mount Kit: Included—3U Vented
Power Requirements: 100-240VAC, 50-60 Hz
Operational Temperature: 0° C – 40° C
Humidity: 5% to 95% Non-Condensing
Storage: -20° C – 70° C
Dimensions Without Rack Mount Kit (H×W×D): 2U, 440mm × 87mm × 246mm
Dimensions With Rack Mount Kit (H×W×D): 3U, 528mm × 137mm × 246mm
Weight: 4.99 kg
